RESISTEX® Geosynthetic Clay Liners

Meeting the Most Demanding Chemical Compatibility Requirements

RESISTEX Geosynthetic Clay Liners are a polymer-modified bentonite GCL that are engineered to provide the highest level of chemical compatibility for hydraulic barrier performance in extremely aggressive leachate environments.



Our RESISTEX family of GCLs offer compatibility with a wide range of pH, electrical conductivity, and ionic strengths that are common to mining liquids. CETCO recommends project-specific compatibility testing for the proper selection from the RESISTEX family of GCLs.



NEW! RESISTEX® Universal GCL Series for Optimal Performance Against CaCl2

A new class of polymer modified GCLs has been added to the RESISTEX GCL family: the RESISTEX Universal GCL series. The Universal series offers world-class performance against Calcium Chloride (CaCl2), making this series a comprehensive choice for most leachates and accelerating the leachate compatibility evaluation process.


Designed to withstand medium to high strength leachates, including coal ash, high pH mining leachates, and low pH mining leachates, the series includes RESISTEX U40 GCL, RESISTEX U60 GCL, and RESISTEX U80 GCL - each variation distinguished by their polymer content.

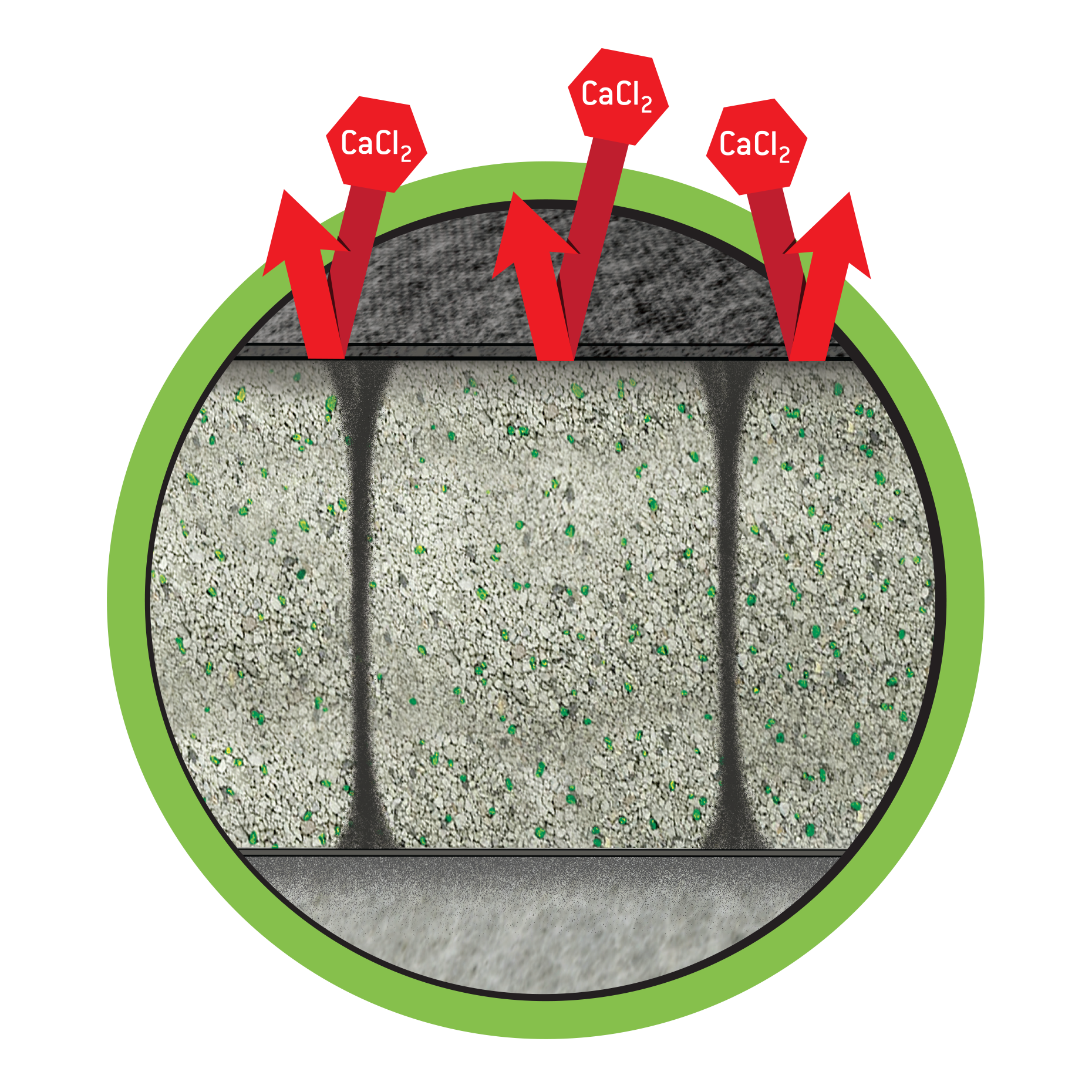

resistex-universal-gcl-series-cross-section-2

By reducing the effects of ion exchange and offering lower hydraulic conductivity against aggressive groundwater chemistries, the RESISTEX Universal GCL series is a standout addition to the RESISTEX GCL family with its proven performance against aggressive leachates. This includes increased swelling and sealing capabilities and robust chemical resistance to aggressive leachates at higher effective stresses post-ion exchange.



Unmatched chemical resistance

Dry-blended, polymer-treated GCLs are designed to provide improved chemical resistance in moderately aggressive leachate environments. The polymers help to reduce the effects of cation exchange by swelling and partly offsetting the reduced bentonite swell.



RESISTEX GCLs offer compatibility with a wide range of pH, electrical conductivity, and ionic strengths and are more effective than standard bentonite for contaminated chemical environments. RESISTEX GCLs may be custom engineered to meet project-specific requirements and are available with different polymer types and loadings.



Award winner

RESISTEX Geosynthetic Clay Liners were the recipient of the GeoME "Best Geosynthetics and Technology" award in 2015.



Common applications for RESISTEX GCLs

  • CCR storage
  • Red mud storage
  • Heap leach pads
  • Mine tailings dams
  • Caps
  • Solid waste storage bottom liner
  • Secondary containment
  • Pond liners

Configurations

100

  • Low Ionic Strength
  • High RMD (Ratio of Monovalent to Divalent Cations)

200

  • Medium Ionic Strength
  • Medium RMD (Ratio of Monovalent to Divalent Cations)

300

  • High Ionic Strength
  • Low RMD (Ratio of Monovalent to Divalent Cations)

FLW9

  • Highly contaminated liquids with steep slopes

Universal Series: U40, U60, U80

  • World-class performance against calcium chloride (CaCl2)
  • Designed to withstand medium to high strength leachates, including coal ash, high pH mining leachates, and low pH mining leachates
  • Variations available include U40, U60, and U80; each variation distinguished by their polymer content

cetco-customized-solutions-gcl



    Drop-In Spec

    We build all of our GCLs to be compliant with GRI-GCL3 and their guide specifications can be found for use on the Geosynthetic Institute website.
