Drainage products

Reduce the risk of major structural damage with the right foundation drainage products.

Aquadrain

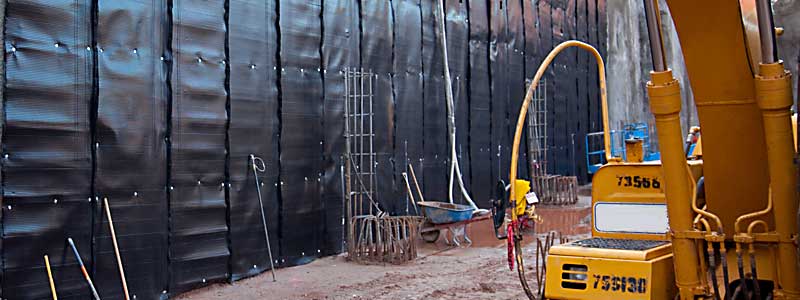

Drainage of water is a critical issue in the design and construction of a structure. AQUADRAIN will collect and channel water away from the structure. For split-slab deck construction, AQUADRAIN provides an avenue for water to flow to drains at the level of the waterproofing membrane beneath the topping wearing surface. In cold climates, this subsurface deck drainage can reduce the risk of possible freeze thaw damage to the wearing surface.

HydroshieldBanner-1
    Featured Products

    200x147_AquaDrain

    AQUADRAIN® 15X
    A two-part prefabricated sheet drain composite consisting of a 3-dimensional polypropylene formed dimple core covered with a non-woven polypropylene filter fabric on one side. The formed dimple core provides compressive strength and collects water for flow to drainage discharge pipes.
    TECHNICAL DATA SHEET

    200x147_AquaDrain

    AQUADRAIN® 15XP
    A three-part prefabricated sheet drain composite consisting of a 3-dimensional polypropylene formed dimple core covered with a non-woven polypropylene filter fabric bonded to one-side and a polymeric film bonded to the other. The formed-dimple core provides compressive strength and collects water for flow to drainage discharge pipes.
    TECHNICAL DATA SHEET

    200x147_AquaDrain

    AQUADRAIN® 30H
    A two-part prefabricated sheet drain composite consisting of a 3-dimensional polypropylene formed dimple core covered with a woven polypropylene filter fabric bonded to one side. The formed-dimple core provides compressive strength and collects water for flow to drainage discharge pipes.
    TECHNICAL DATA SHEET

    G20

    AQUADRAIN® G20
    A two-part prefabricated drainage composite consists of a high strength HDPE geo-net core with a non-woven polypropylene filter fabric bonded to both sides. AQUADRAIN G20 is designed for horizontal and vertical applications requiring very high compressive strength with low to moderate flow properties.
    TECHNICAL DATA SHEET

    GS25

    AQUADRAIN® GS25

    A three part prefabricated drainage and protection composite consisting of a high strength HDPE geo-net core with non-woven polypropylene filter fabrics bonded to both sides. AQUADRAIN G25 is designed for horizontal and vertical applications requiring very high compressive strength properties with low to moderate flow properties.TECHNICAL DATA SHEET
