The LaCam® Family

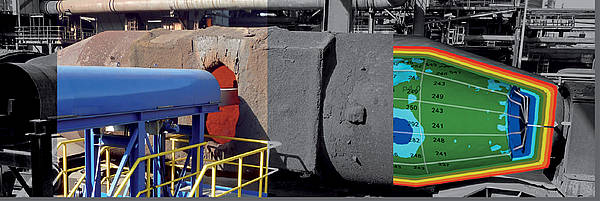

Our laser profile measurement systems are used for non-contact scanning of the refractory lining in metallurgic reaction and transport vessels, like converters, EAFs, torpedo ladles and steel casting ladles, as well as in open die forging shops.

The measurement values detected by laser scanners permit early and effective patching of defective locations and increase the lifetime of the refractory lining. Refractory costs are reduced at the same time operating safety is increased. The product assortment ranges from mobile to stationary measurement systems. By continuing to develop the laser technology as well as the operating and analysis software, FERROTRON laser profile measurement technology is now the world's market leader.



LaCam® and its various applications:



LaCam®
LI Explorer​

Our newest and most unique product with a 360 degree immersion scanner... laser measurement profile of refractory lining.


Ferrotron_LaCamLI

LaCam®
M​

Mobile version for converter and ladles for extremely high ambient temperature

Image01_LaCam_M

LaCam®
CI​

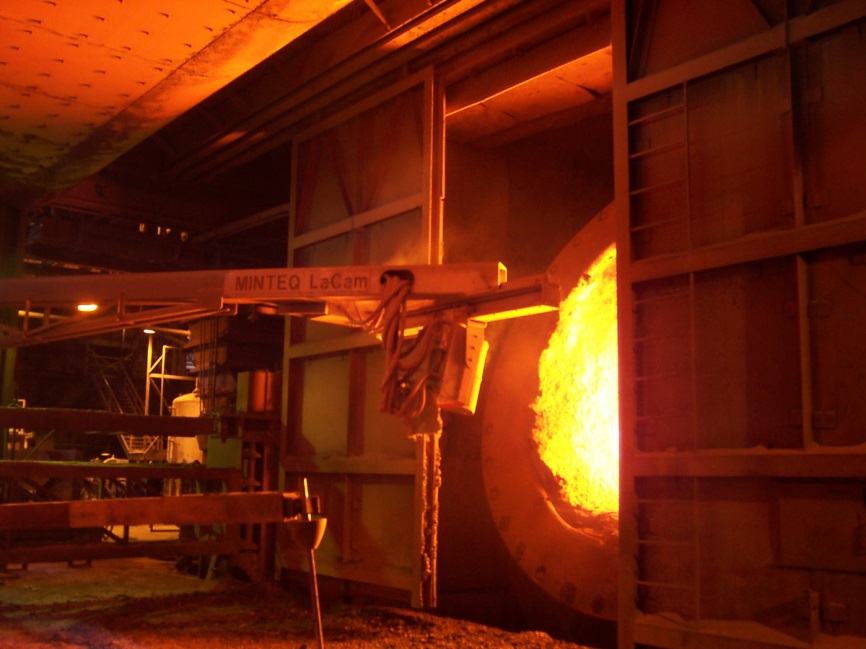

Fixed installation at a converter

Image02_LaCam_CI

LaCam®
LI​

Fixed installation at a ladle stand

Image03_LaCam_LI

LaCam®
EAF​

Fixed installation at an electric arc furnace

Image04_LaCam_EAF

LaCam®
Forge

Is an innovative measuring system for open die forging shops. It uses a three-dimensional eye-safe laser scanning system which is specially designed for hot surfaces and steel mill surrounding conditions. The heat radiation is measured and provides the possibility to measure the surface temperature distribution of the workpiece as well as straightness or final dimension control. A necessity in every quality process.

Image05_LaCam_Forge_Top

LaCam®
Scantrol​

The LINK between LaCam measuring system and gunning robots.

Image07_LacCam_Scantrol
